Airmar B45 - Mix and Match

(No reviews yet) Write a Review
RRP: AU$819.00
Now: AU$546.00
— You save AU$273.00
SKU:
B45-DT-0
MPN:
31-288-6-01
Availability:
Usually Ships in 2-3 days
Shipping:
Calculated at Checkout
Found at a lower price? Please, select required options.
  • Airmar B45
  • Airmar B45 - Mix and Match

Description

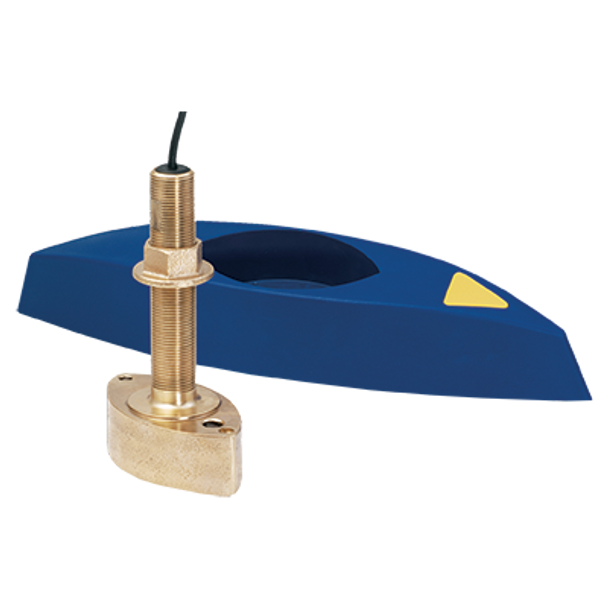

Airmar B45 - Mix and Match B45-DO-0

Bronze 600W 50/200kHz thru-hull model with fairing. Depth and temperature.

This transducer can be used with any 600W Mix and Match cable.

Note that this item comes from the Usa and may take 7-10 days to deliver, if not in stock.

  • Depth and fast-response water-temperature sensing
  • 600 W of power
  • Dual-frequency element:
    • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
    • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Excellent performance and sensitivity in a small housing
  • Bronze housing with High-performance Fairing for optimal performance at speed
Brand: Airmar Technology
Acoustic Window: Urethane
Cable-Length: 10 m (33')
Common Use: Cruising/Racing Sailboats, Leisure/Yachting, Fishing
Connector: Various
Conventional Beam: 45°/12°
Country of Origin: USA
Deadrise Range: Up to 28° with fairing
Display Connector: HB
Frequency Band: 50/200 kHz
Hole Size: 22 mm (7/8")
Housing Material: Bronze
Hull Material: Fiberglass or wood
Max Deadrise: Up to 26° with fairing
Max Deadrise Angle: 26°
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Max Vessel LOA: Up to 9 m (30')
Mounting Style: Thru-Hull with Fairing
Power Rating: 600 W
Sensor Connector: MM
Single or Dual Frequency: Conventional Dual Frequency
Tilted Element: No
Transducer Functions: Depth, Temperature
Usable Shaft Length: 92 mm (3.62")
Weight: 2.5 kg (5.5 lb.)
Mix and Match Series: 5-Pin 600 Watt
