Description
Airmar B60 12 deg - Mix and Match
600 W

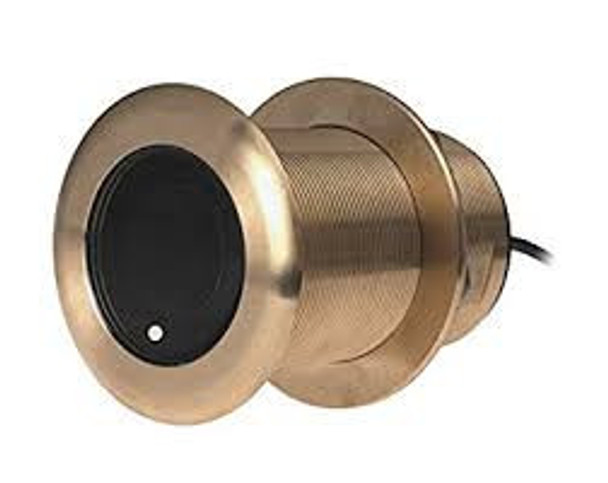

The B60 is a 600 W, 50/200 kHz transducer that integrates Airmar’s popular, Tilted Element feature. This Tilted Element transducer has the ceramic element fixed at either a 20° or 12° angle within the housing. When the transducer is installed almost flush to the hull, the tilt of the element corrects for the hull deadrise angle. By orienting the beam directly down, it ensures maximum echo returns to the transducer for more-accurate depth readings.
Available in two Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
Note that this item comes from the USA and may take 7-10 days to deliver, if not in stock.
## Specifications##
Brand: Airmar Technology
Frequency Band: 50/200 kHz
Functions: Depth, Temperature
Material: Bronze
Mounting Style: Tilted Element Thru-Hull
Tilt Angle: 12°
Deadrise Range: 8° to 15°
Connector: Varies
Display Connector: 0
Sensor Connector: MM
Mix and Match Series: 5-Pin 600 Watt
Hull Material: Fiberglass or wood
Max Vessel LOA: Up to 8 m (26')
Usable Shaft Length: 68.5 mm (2.70")
Hole Size: 60 mm (2-3/8")
Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
Max Deadrise Angle: 24°
Common Use: Leisure/Yachting, Fishing
Tilted Element: Yes
Acoustic Window: Urethane
Country of Origin: USA
Cable-Length: 10 m (33')
Conventional Beam: 45°/12°
Max Deadrise: Up to 24°
Power Rating: 600 W
Retractable housing: No
Weight: 1.4 kg (3 lb.)
Single or Dual Frequency: Conventional Dual Frequency
