Description
May need to be ordered in from the USA, Can take 7-14 days.

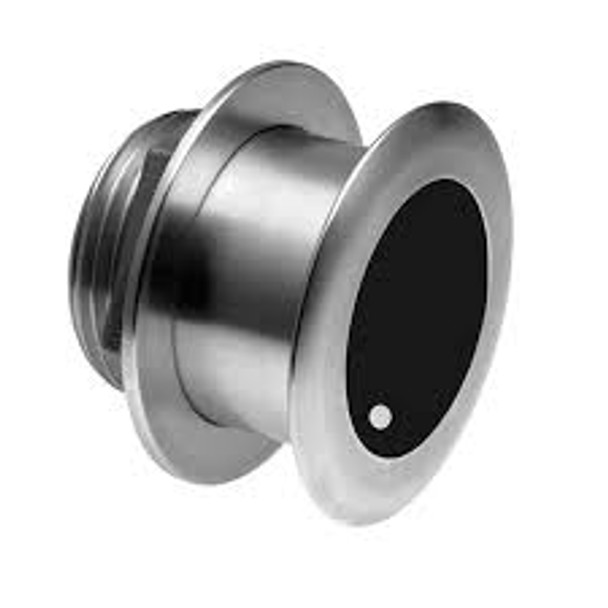

The SS175 is available in three Tilted Element models:
- Fixed 20° tilted version for 16 to 24° hull deadrise angles
- Fixed 12° tilted version for 8 to 15° hull deadrise angles
- Fixed 0° tilted version for 0 to 7° hull deadrise angles
Features
Depth and fast-response water-temperature sensing
1 kW of power
Medium frequency: 85 to 135 kHz
16° to 11° beamwidth
Maximum depth of 457 m (1500')
50 kHz of total bandwidth from one transducer
Low-profile, thru-hull housing provides good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Stainless steel housing for use in all hull materials
Also available in a bronze housing (B175M) for use in a fiberglass or wood hull
Patented Xducer ID® technology
Specifications
- Brand: Airmar Technology
- Acoustic Window: Urethane
- Cable-Length: 9 m (30')
- Common Use: Fishing
- Connector: Airmar 12-Pin (MMC)
- Country of Origin: USA
- Deadrise Range: 0° to 7°
- Display Connector: Cable Required
- Frequency: Medium
- Frequency Band: Medium
- Functions: Depth, Temperature
- Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
- Hull Material: Compatible w/ all hull materials
- Material: Stainless Steel
- Max Deadrise: Up to 24°
- Max Deadrise Angle: 24°
- Max Depth: 457 m (1500')
- Max Vessel LOA: Up to 11 m (36')
- Medium Frequency: 85-135 kHz
- Medium Frequency Beamwidth: 16°-11°
- Mix and Match Series: 12-Pin Chirp
- Model or Series: SS175
- Mounting Style: Tilted Element Thru-Hull
- Power Rating: 1 kW
- Product Family: Marine
- Retractable housing: No
- Sensor Connector: MMC
- Single or Dual Frequency: CHIRP-Ready Single-Band
- Tilt Angle: 0° 12 and 20
- Tilted Element: Yes
- Weight: 2.7 kg (6 lb.)
