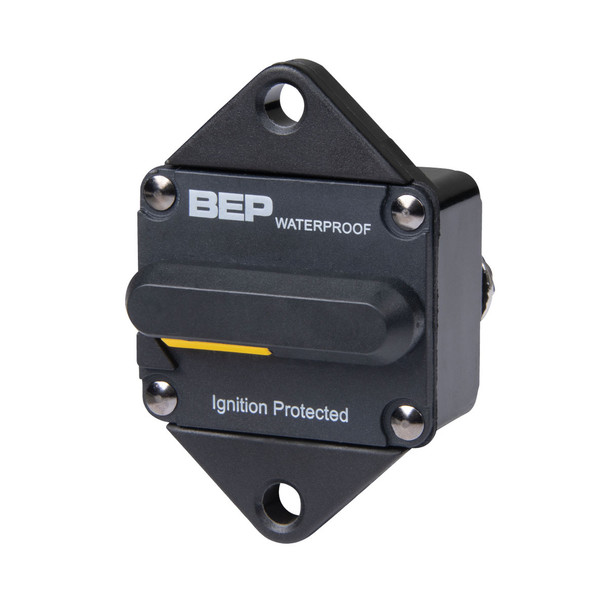

BEP Heavy Duty Circuit Breakers Panel Mount

BEP Heavy Duty Circuit Breakers

These heavy circuit breakers are designed for DC power systems to 48 volt where reliability and functionality for both switching and circuit protection is essential. Ideally suited to a wide range of marine, truck, bus and RV applications where add on circuit protection of ACcessories to 200A is required. Manufactured to comply with CE, ABYC E-11 and SAE J1171 these circuit breakers are external ignition protected, weatherproof to IP66 and available in either panel or surface mount configurations.

Specifications:
• Rating: 200A, 48V DC
• Interrupt Rating: Main Breaker Protection Interrupt Rating (5,000A@ 14V DC, 3,000A@ 28V DC and 1,500A@ 48V DC)
• Operating Temperature Rating: -40°F (-40°C) to 185°F (85°C)
• Storage Temperature Rating: -40°F (-40°C) to 260°F (125°C)
• Materials: Black UL-rated 94V0 thermoset plastic body
• Cover and lever are UL-rated 94V0 thermoplastic
• Marking: Standard marking includes amp/volt ratings
• Termination: 5/16-18 threaded studs
• Torque Rating: 75 in-lbs (8. 5Nm) max
• Mounting Torque Rating: Panel or surface-mount options; 50 in-lbs (5. 6 Nm) max
• Ingress Protection Rating: IP66

Features:
• Weatherproof IP66 design
• Trip free safety feature
• Switchable circuit protection
• Easy installation for either surface
• Panel mount or recess
• Easy single lever operation
• Ignition protected
• Safe for installation on petrol powered boats
• Heavy duty 5/16”-18 terminals
• ABYC E-11, CE, SAE J1171 (ignition protected)
