Description

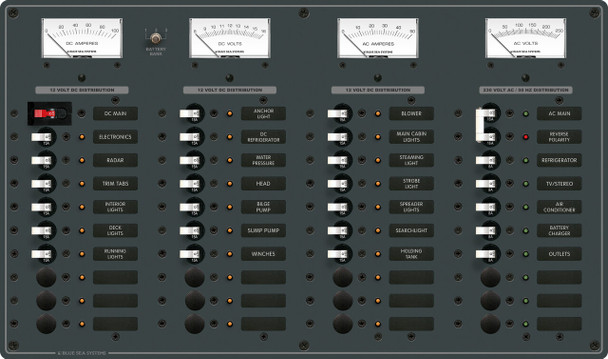

Blue Sea AC/DC Combination Circuit Breaker Panel - 8 x AC + 29 x DC
- All AC and DC buses installed and fully pre-wired
- Label backlighting pre-installed
- ON - indicating LEDs installed in all circuit positions
- 100 Ampere C-Series Toggle Circuit Breaker provides main circuit protection and switching for DC branch
| Specifications | |
|---|---|
| Positions | 8 AC 29 DC |
| Nominal Voltage | 230V AC 12V DC |
| Height | 11.50in (292.1 mm) |
| Width | 19.50in (495.3 mm) |
| Depth | 3.00in (76.2 mm) |
| Weight | 12.80lb (5.81 kg) |
| Weight | 12.45lb (5.65 kg) |
| Included | |
|---|---|
| Qty | Product |
| 5 | A-Series White Toggle Circuit Breaker - Single Pole 8A (AC Branch) |
| 1 | A-Series White Toggle Circuit Breaker - Double Pole 16A (AC Main) |
| 1 | AC Voltmeter - 0 to 250V AC (AC Meter) |
| 1 | AC Ammeter - 0 to 50A with Coil (AC Meter) |
| 20 | A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch ) |
| 1 | Circuit Breaker CA1 100A Red IP (DC Main) |
| 1 | DC Analog Voltmeter - 8 to 16V DC (DC Meter) |
| 1 | DC Analog Ammeter - 0 to 100A with Shunt (DC Meter) |
