Description

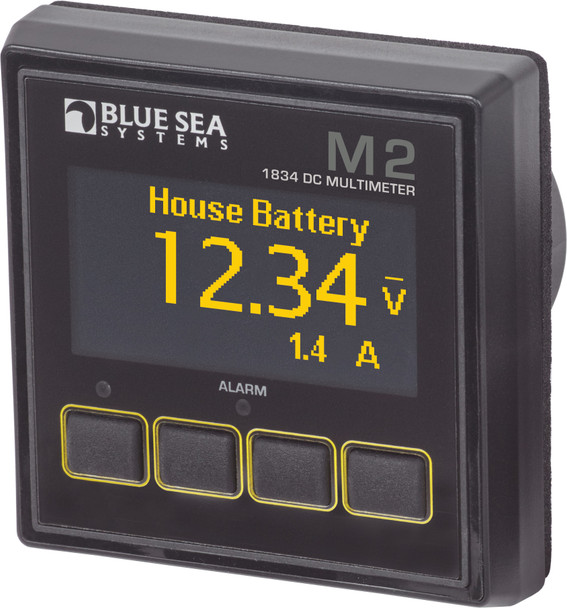

Blue Sea M2 OLED DC Multimeter

Name: Blue Sea M2 OLED DC Multimeter
Brand: Blue Sea
SKU: BS-1834
Price: 782.4 AUD
Availability: InStock

Blue Sea M2 OLED Digital Multimeters measure Voltage and Current for either AC or DC systems.

BS-1834 monitors DC Voltage and Current of three batteries and the Current of 1 circuit; where BS-1838B ACcurately monitors Voltage, Current, AC amperage and Hz. for AC systems (measuring 2 voltages and 2 circuits. )

The M2 Monitor includes a MOSFET External Circuit Relay which can be used to control external circuits based on any value measured by the M2.

BS-1834 (DC) Multimeter

Measures Voltage and Current of three batteries and the Current of 1 circuit
Alarms for High Current, and High/Low Voltage
Range: -500 to 500A
Function: 8 to 70V to 5000A
Resolution: 0. 01V DC
Supports programmable shunt ratios
Includes external DC Shunt when required

BS-1838B (AC) Multimeter

Measures Voltage, Current, AC amperage and Hz. (measures 2 voltages and 2 circuits)
Alarms for High/Low Current, High/Low Frequency and High/Low Voltage
Function: 50 to 250V to 300A
Resolution: 1V DC
Frequency Range: 40-90Hz
Frequency Resolution: 1Hz
Power Range: 0-45kW
Power Resolution: 10W (0-9990W); 0. 1kW (10-45kW)
Includes AC Current Transformer Coil

Specifications for both:

IP66 waterproof rating
Auto-dimming LED display: 55mm x 28mm
80dB alarm on all models
Isolated 500mA MOSFET relay
Mounts in 54mm hole
Max. Consumption: 1w

Meter	Current Voltage
Function	8 to 70V to 5000A
Resolution	0.01V DC
Input Voltage	7-70V DC
Alarms	High Current High/Low Voltage
Current Accuracy	± 1.0%
Current Range	-500 to 500A
Display Size	55mm x 28mm
Maximum Power Consumption	1.00 Watt
Minimum Power Consumption	0.3 Watt
Voltage Accuracy	± 1.0%
Weight	4.00lb (1.81 kg)
