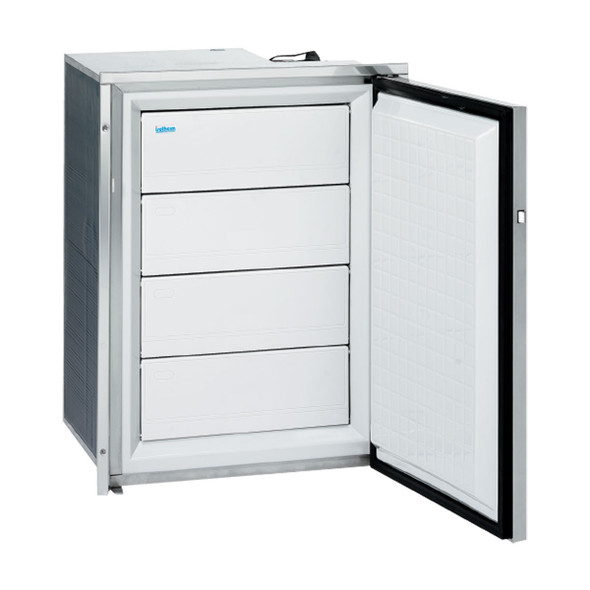

Isotherm Freezer - Cruise 90 F 381754 Isotherm Freezer - Cruise 90 F. The Isotherm Cruise freezer units are the perfect complement to Cruise refrigerators. The high quality freezers ensure the perfect and constant temperature to keep frozen food on board. The CR 90 Freezer has the same outside dimensions as the CR130 fridge. Therefore these units can be perfectly mounted side by side. The CR 90 F is equipped with three shelves and four separate lids. It is supplied with a fan-cooLED compressor. Features:Extra thick insulation for excellent cooling performance and low power consumption12 / 24 V Danfoss / Secop compressorDoor with safety lock and magnetic rubber sealExcellent solution for a side by side fridge-freezer application Part Number TypeVolumeDimensions (H x W x D)WeightPower ConsumptionDanfoss / Secop compressor typeFreezer VolumeFreezer TemperatureCut-Out (H x W)Flange Size381754CR 90 F90L746mm x 527mm x 520mm*28kg550 W/24 hoursBD35F90L-18degC751mm x 531mm/:/:10mm:/ (Left:Right:Top:Bottom)* Door thickness (to be added): +40 mmPower consumption W / 24 h in operation on 12 Volt with -18degC in the freezer space, ambient temperature +25degC ACcording to the Standards ISO 15502:2005 and EN 153:2006Refrigerators manufacturing tolerances -2 / +4 mmDimensions include refrigerator feetWith AC / DC optional kit, depth may increaseAccording to EN 603335 - 1 regulation, the inside walls of the furniture housing the refrigerator must distance from the fridge by 20 mm per side and 50 mm from the topPlease refer to the installation manual for further technical / installation detailsSpecification changes may be made without prior notice
