Lenco Pro Control Assist System Kits - 12V
Pro Control Assist is the manual control option which features a smart, sleek dial controller, providing a best-in-class user interface.
Standard Mount Trim Tabs—The original Trim Tab design, ideal for center console fishing boats to cuddy cabin cruisers.
Edge Mount Trim Tabs—Designed for boat applications where a lower actuator mounting height is desirable. Actuator mounts at the trailing edge of the blade giving it a 3” (7.6 cm) lower mounting height on 12” (30.5 cm) long blades. All edges are turned up for added strength and style.
| Part Number | Mount | L x W in | Boat Length ft |
| 312900-BLA | Standard | 9″ x 12″ | 14' - 18' |
| 312902-BLA | Standard | 12″ x 12″ | 22' - 30' |
| 312910-BLA | Edge Mount | 12″ x 12″ | 16' - 25' |
## Whats Included##
Kits Include:
- (1) Pro Control Auto Keypad (312942)
- (2) 12-gauge 304 (2.7 mm) stainless steel standard finish blades:
- - Standard blades - with a 5/8” (1.6 cm) flared trailing edge
- - Edge Mount blades - with 1” (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge) & 1/8” (3.2 mm) diameter hinge pin
- (2) 2.25” Stroke SD Pro Actuators, 10” pin to pin (312960)
- (5) Micro C Tee Connector (312996)
- Micro C Power Cable with fuse and ground (312991)
- (2) 6’ Micro C Drop cables (312993), (1) 25’ (312994)
- Micro C Drop cables
- (2) 6 Pin Detusch to Micro C Actuator Network Adapter Cable
- (2) 3’ (.91 m) Pro Control Actuator Power Pigtail
- (2) Wake Signal Adapter for Non-Mercury Systems
- (2) Corrosion proof Upper Mounting Brackets with gland seal (312982)
- (2) Corrosion proof Lower Mounting Brackets (312983)
- Lenco 2K Backbone Kit
## Whats Included##

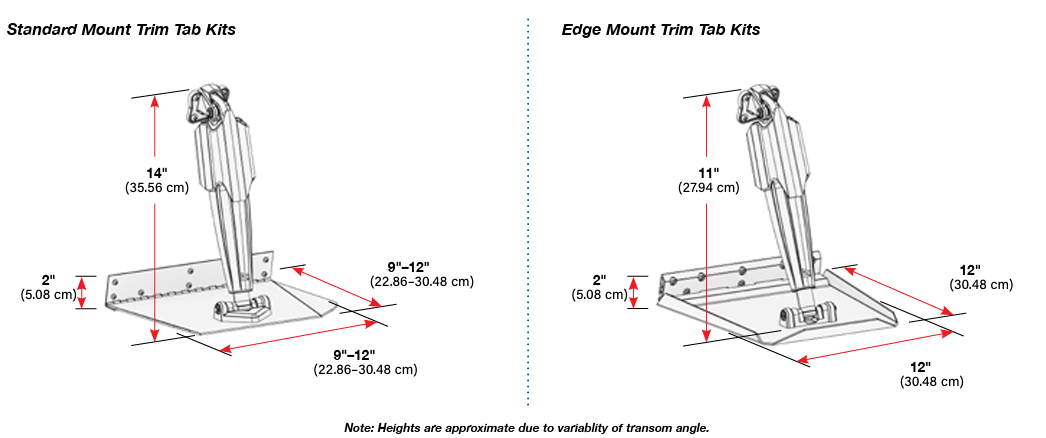

## Dimensions##
