Description
Livewell Overflow Drain Fitting 90º 38mm
Injection moulded drain fitting installs in base of live tank, for connection to through hull, with minimal space requirement under live tank. The plastic and PVC overflow tube is fitted into drain fitting to keep livewell water depth at desired level. Grate at top of overflow tube prevents catch or live bait from blocking overflow tube. To empty live tank remove the overflow tube. Over flow tube is 450mm long but can be cut down as required. Tube and drain purchased separately.

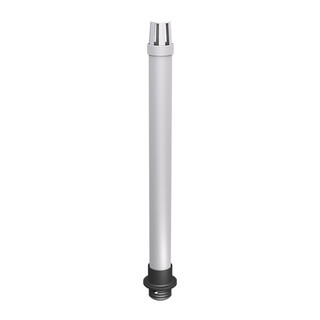

Accessories: 131970-BLA Overflow tube
Part Number
|
Outlet
|
Hose Size
mm |
Flange Overall
Dia. mm |
Cut out
Dia. mm |
Intrusion
mm |
---|---|---|---|---|---|
131968 | 90° | 38 | 74 | 48 | 100 |
