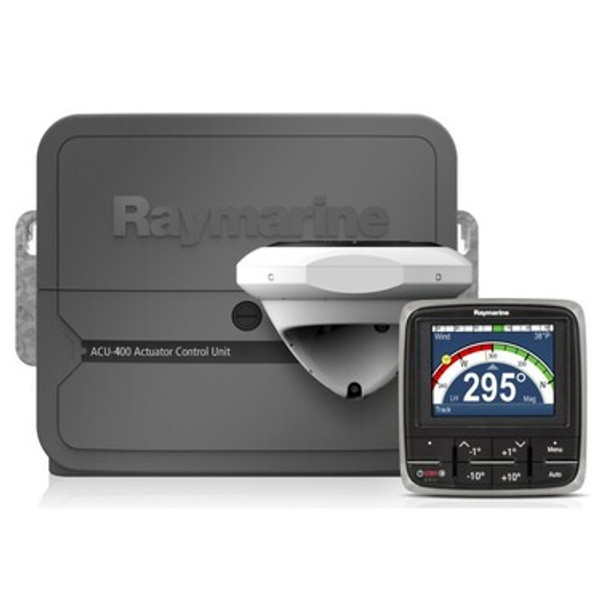

Raymarine Evolution Autopilot with p70 control head & ACU-400 T70161

Raymarine Evolution Autopilot with p70s control head & ACU-400,EVI Sensor Care EVO Cabling Kit (suitable for Type 2 & 3 drives)

Features: Heavy-duty, 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems Evolution Ai for superior performance No calibration required SeaTalkng Network Compatible ACU-400 auxiliary power to SeaTalkng network Includes p70 Autopilot Controller

Includes:

EV-1 Sensor Core
p70 Autopilot Control Head
ACU-400 Actuator Control Unit
Evolution Cabling Kit
EV Unit O-Ring Pack (set of 2)
Wall Mounting Bracket

The EV Sensor Core
At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.

Features:

Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
Flexible installation options
Mount above or below deck
Simple SeaTalkng connectivity to the control head and ACU
Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

p70 Autopilot Control Head
The p70 is a push-button operation controller designed primarily for sailboats.

Features:

LightHouse user interface is simple and quick to use
Wide 160° viewing angles
Start up wizard helps you configure the pilot quickly and easily
Anti-reflective coating for improved visibility in bright sunlight
Low power - typically 132mA/1. 6W - 27% less than ST70 at x4 measured brightness
Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
Simple system and group dimming/illumination
Support for multiple data sources
SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-400 Autopilot Control Unit (ACU)
The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Support Drive Units
Heavy-duty, 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems

Evolution Cabling Kit
