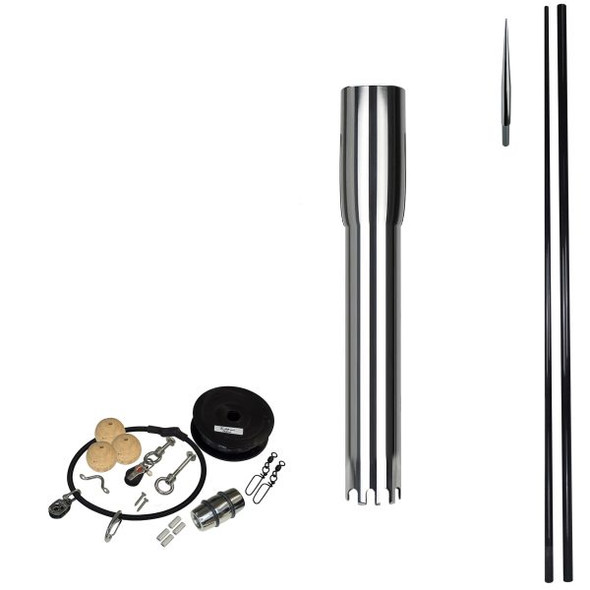

Reelax - Supa Rigging Kit - Complete Kit for Outriggers and Shotgun

Reelax Supa Kit is used for rigging a halyard system to an outrigger pole, in conjunction with a tag line kit for eliminating drop back or line slack once a fish strikes a lure.

The halyard system allows a Blacks Release Clip (made in the U. S. A) to be positioned anywhere along the length of the out rigger pole.

The Blacks Release Clip is tension set to the desired strike pressure from the trolled rod and is to be deployed from the out rigger pole.

Either side of the Blacks Release Clip is a Rosco 851-4/0 USA Black Coast Lock Snap Swivel which insures tangle free rigging. The Reelax Supa Kit main halyard line is VB chord (white) which is durable and slippery.

Nickel brass double sleeved crimps connect the main line to snap swivels. Constant tension is applied from Reelax Snubbers consisting of heavy duty 8. 00mm shock chord which is doubled over with a stainless hook and stainless pulley fitted.

This provides a connection to the boat via the stainless hook and saddle while at the opposite end of the Reelax Snubber the main line runs threw a Stainless Pulley.

Fitted along the length of the outrigger pole at 3 precise positions are 316 stainless eye nuts. With the eye nut at the tip of the outrigger pole fitted with a D – Shackle and Stainless Pulley.

The Reelax Supa Kit also has a Tag Line Kit and consists of 316 Stainless Returns with rubber bumpers which prevent damage to the outrigger pole if the returns were to come in contact.

Cork Balls are also supplied as stoppers for the Stainless Returns at either ends of the tag line. The Cork balls prevent the tag weights from jamming on to snap swivels at the bottom of the Blacks Release Clip.

Also preventing damage to the Stainless Pulley on the Reelax Snubbers.

Rosco 851-4/0 USA Black Coast Lock Snap Swivels are used either end of the tag line to connect to the bottom of the Blacks Release Clip

Also the end of the Tag Line where a piece of Dacron (250mm) is tied to for connection to the main line off the rod being trolled via a rubber band.

Nickel brass double sleeved crimps connect the Rosco 851-4/0 USA Black Coast Lock Snap Swivels to the Tag Line.

EYENUTS SUPPLIED MUST BE FINGER TIGHT ONLY AND THREAD LOCK SUCH AS LOCTITE MUST BE USED:

Please Note-All Reelax equipment is made to order and there is a manufacture time of around 7-10 days plus delivery.

Also some of the Reelax range will incur extra freight charges which we will notify you of as soon as we receive your order.
