Description

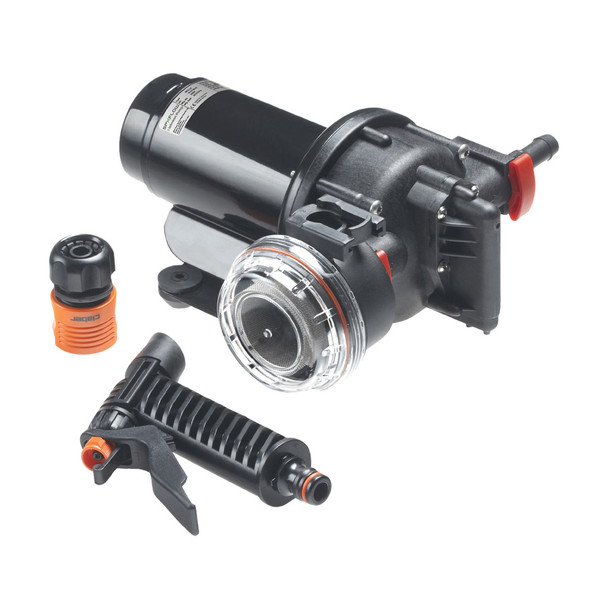

SPX Aqua Jet Wash Down Pumps - 3.5
Complete with trigger nozzle, pump protector inlet strainer and hose connections for 1/2" hose. Both BSP and NPT connections included in package.
- Motor: WD 3.5 - 120 W, 12/24V DC
- Body: PP Food Grade Composite
- Valves: Nitrile
- Diaphragm: Santoprene
- Connection: 3/8" BSP / hose 1/2" 133298-BLA includes 4.5 metre hose
Spare Parts
131738-BLA Strainer aqua jet inlet
133470-BLA Pressure switch aqua jet micro
| Part Number | 133298-BLA | 133336-BLA | 133337-BLA |
| Description | WD 3.5, 12V with hose | WD 3.5, 12V | WD 3.5, 24V |
| Capacity | 13 L/m, 3.5 GPM | 13 L/m, 3.5 GPM | 13 L/m, 3.5 GPM |
| Fuse Size | 15A | 15A | 8A |
| Pressure Cut Off* | 5 bar / 70 psi | 5 bar / 70 psi | 5 bar / 70 psi |
| Length mm | 236.5 | 236.5 | 236.5 |
| Width mm | 210 | 210 | 210 |
| Height mm | 116 | 116 | 116 |
N.B. *Cut off pressure 2.1 bar/30 psi and 1.4 bar/20 psi available on request
** NPT-connection available on request
