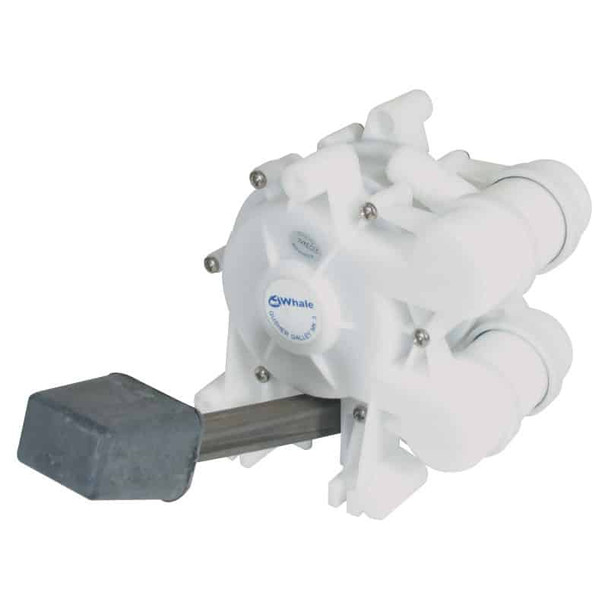

Whale Gusher Galley Mk3 Foot Pump GP0550
Whale Gusher Galley Mk3 Foot Pump – Right.
The Gusher Galley Mk3 is a popular marine foot pump used by thousands of satisfied users worldwide. It offers easy smooth double action, allowing fine control from a trickle to full flow.
It can be mounted on the floor, behind a bulkhead, or on a bulkhead. When installed with the pedal through the bulkhead, it provides a neat appearance.
- It is ideal as a backup pump for an electric water system and can be directly integrated into Whale System 15 plumbing.
- It has multi-directional inlet and outlet hose connections.
- It is suitable for use with both saltwater and freshwater.
- The pump is constructed from acetal, copolymer, nylon, neoprene, nitrile rubber, and stainless steel.
- It can also be used to prime Whale In-Line Booster pumps.
- The pump has a capacity of pumping 15 liters (4 US gals) of fresh and saltwater per minute.
- It weighs 0.7 kg (1.5 lbs).
- The hose connections are suitable for connection to Whale Quick Connect 15 mm Plumbing.
- The pump’s body is made of acetal and nylon, the lever is made of LM6 aluminum alloy, the diaphragm is made of Nitrile® and Neoprene, and the fasteners are made of stainless steel.
- The pump can be serviced with Service Kit AK0553 (suitable for Mk 3 only), which contains a diaphragm, valves, and seals.
- The piston and operating kit can be replaced with AS0556.
- The maximum suction lift is 2 m (7 ft), and the maximum discharge head is 3 m (10 ft).
- The maximum output per minute is 15 liters (4 US gals).
- The dimensions of the pump are: width 152mm, height 131mm, front to back 196mm.
- The hose size is 15mm.
- Mount screws required are 4mm r/h (not included).
