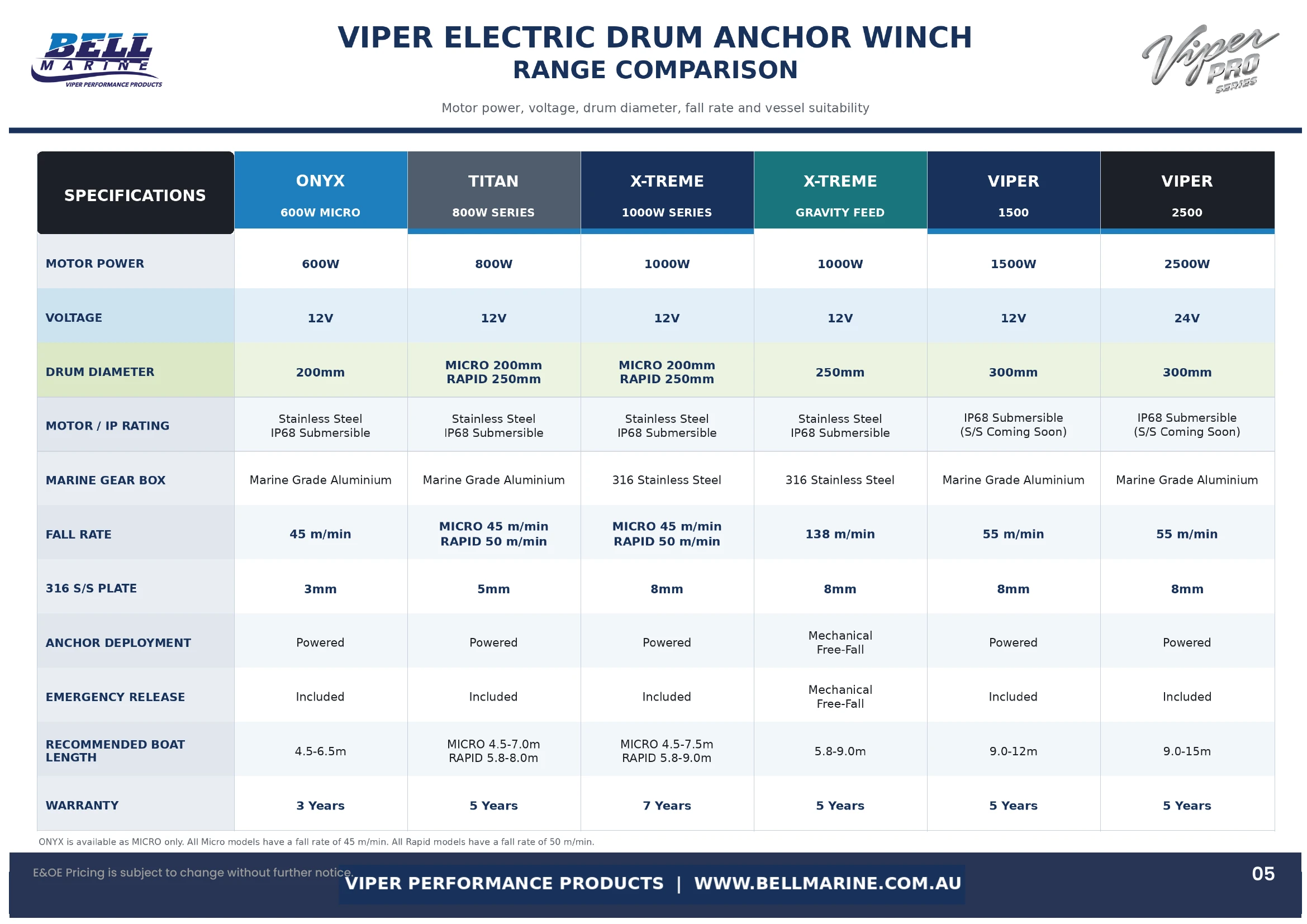

Viper Winch Comparison Chart

Explore the latest Viper Pro electric anchor winches at Blue Bottle Marine. Designed and manufactured by Bell Marine, the new Viper Pro range includes the ONYX, TITAN and X-TREME Series, offering reliable anchoring solutions for recreational fishing boats, aluminium boats, offshore vessels and commercial marine applications.

Featuring IP68-rated submersible electric motors, stainless steel construction and a choice of powered or gravity feed anchor deployment, Viper Pro drum winches are designed to make anchoring easier, safer and more convenient.

Explore the New Viper Pro Anchor Winch Range

Viper ONYX Series 600W

The ONYX Series is a compact and practical electric drum anchor winch designed for boats from 4.5 to 6.5 metres. Featuring a 600W IP68 submersible motor, anodised marine-grade aluminium gearbox and 3mm 316 stainless steel construction, the ONYX offers dependable anchoring performance for smaller vessels.

Viper TITAN Series 800W

Available in Micro and Rapid configurations, the TITAN Series features an 800W IP68 submersible motor, 5mm marine-grade 316 stainless steel construction and an anodised aluminium worm drive gearbox. Designed for boats up to 8 metres, the TITAN range offers increased strength and rope capacity for recreational boating and fishing applications.

Viper X-TREME Series 1000W

The X-TREME Series is designed for boat owners seeking heavy-duty stainless steel construction and powerful anchoring performance. Featuring a 1000W IP68 submersible motor, 8mm marine-grade 316 stainless steel construction and a 316 stainless steel worm drive gearbox, the X-TREME range is available in Micro, Rapid and Gravity Feed configurations.

The X-TREME Gravity Feed model features mechanical free-fall anchor deployment, with a maximum drop rate of 138 metres per minute for fast, controlled anchoring over fishing marks.

Viper Pro Series 1500W & 2500W Anchor Winches

Designed for larger recreational boats and commercial marine applications, the Viper Pro Series 1500W and 2500W electric anchor winches deliver increased pulling capacity and rope storage for demanding anchoring conditions.

Suitable for vessels from approximately 9 to 15 metres, depending on the model, these heavy-duty drum anchor winches feature powerful electric motors, marine-grade stainless steel construction and an emergency manual release system.

Available in 1500W 12V and 2500W 24V configurations, key features include:

• Maximum load capacity of 360 kg
• Rope storage capacity of up to 200 metres, depending on rope configuration
• Maximum anchor deployment speed of 55 metres per minute
• Heavy-duty 300 mm diameter drum
• Emergency manual release for added safety
• Marine-grade anodised aluminium worm drive gearbox
• Complete anchor winch bundles with optional rope and chain kits
• 5-year manufacturer's warranty

The Viper Pro 1500W and 2500W Series provides a practical anchoring solution for larger offshore fishing boats, cruisers and commercial vessels requiring additional power and rope capacity.

Built for Australian Boating Conditions

Across the new Viper Pro range, features include:

• IP68-certified submersible electric motors
• Marine-grade 316 stainless steel construction
• Stainless steel or anodised aluminium worm drive gearboxes, depending on the model
• Emergency manual release on powered deployment models
• Flexible motor mounting positions to suit different installations
• Micro, Rapid and Gravity Feed configurations
• Complete anchor winch bundles with installation components
• Manufacturer warranties ranging from 3 to 7 years, depending on the model

Complete Viper Pro Anchor Winch Bundles

Viper Pro anchor winch bundles are available with a selection of rope and chain configurations to suit different vessel sizes and anchoring depths.

Depending on the model selected, bundles include anchor rollers, swivels, reversing solenoids, switches, circuit breakers and mounting hardware.

Find the Right Viper Pro Anchor Winch

Choosing the correct electric anchor winch depends on your boat length, anchor weight, available anchor well space and intended anchoring depth.
