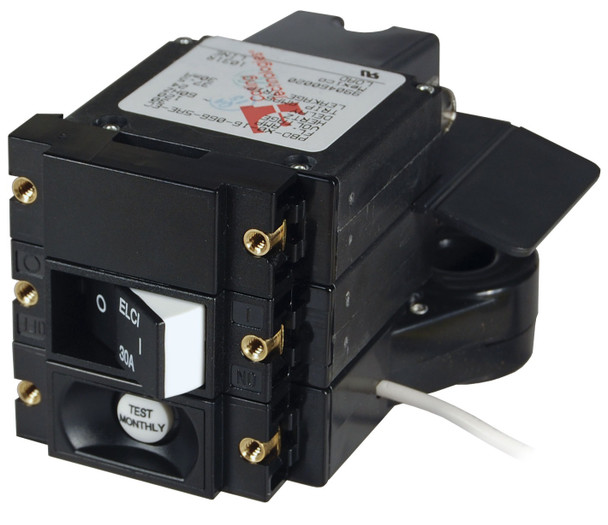

Blue Sea Residual Current Circuit Breaker ELCI Main A-Series Frame - Double Pole

Blue Sea Residual Current Circuit Breaker ELCI Main A-Series Frame - Double Pole BS-3102100B Residual Current Circuit Breaker ELCI Main A-Series Frame - Double Pole Residual Current Devices (RCDs) respond to leakage of electrical current outside of the intended circuit path. When the RCD function is combined with a circuit breaker for over current protection, the device is often referred to as an RCBO. In the USA, a device that trips on leakages of nominally 5mA and meets certain standards is called a Ground Fault Circuit Interrupter (GFCI). A device meeting the same standards but with a trip level of 30mA is called an Equipment Leakage Circuit Interrupter (ELCI). The devices below provide ELCI Main functions and circuit protection in panel mounted breakers. Trips on short circuit, overload, or leakage to ground For installation in a power distribution panel Provides overcurrent and leakage protection per ABYC E-11 for whole boat shore power protection Regulatory: UL 1077, UL 943 Class A, UL 1500 Interrupting Capacity 5000A Temperature Min. Operating -35degC Temperature Max. Operating 66degC Switching Cycles 10,000 @ rated Amps & Volts Type Magnetic Hydraulic - Trip free Mounting Screw #6-32 Stainless Steel (included) Mounting Screw Torque 6-8 in-lb   Part Number AC Main Amps Leakage Trip Amps Poles Actuator Frame Series Nominal Voltage ENE-BS-3102100B 30A (AC) 30mA 2 Flat Rocker A-Series 120V AC per pole
