Description
GME DELIVERY TIME MAY TAKE 10-14 DAYS IF NOT IN STOCK

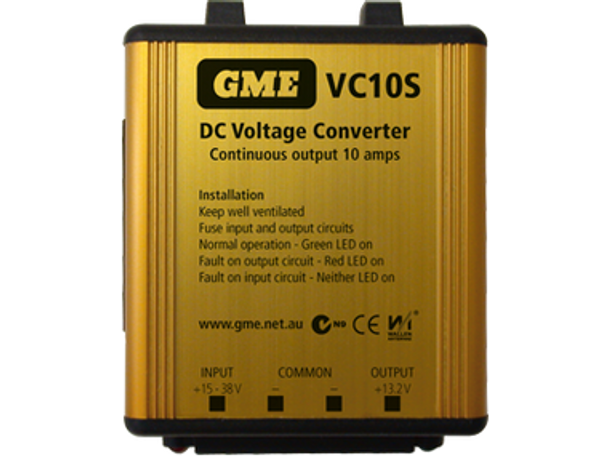

GME VC10S 10 Amp Switch Mode DC Voltage Converter VC10SGME VC10S 10 Amp Switch Mode DC Voltage
Genuine GME Voltage Converters.
10 Amp - 13. 2 Volts DC Output
An innovative concept in Voltage Converters, with built-in protection for equipment and vehicle electrics.
Product Details
- 24 - 13. 2V Switch mode operation
- High performance, high reliability
- Soft shutdown fault protection
- Quick and easy super-safe installation process
In the Box
-
Voltage converter unit
Specifications
GENERAL
Type - Switch mode non-isolated
Input (V DC) - 15-38
Output (V DC) - 13. 2
Constant current 103. 80% duty cycle (Amps) - 10
Intermittent current 30% duty cycle (Amps) - 14
Quiescent current: <15mA
Oscillator frequency (kHz) - 60
Transient voltage (kV) - Level 3 @ 2kV
Protection - Overload reverse polarity short circuit soft shut-down
Efficiency (approx) - 89%
Connection - 4 x spade
Colour - Black - gold
Dimensions (mm) - 32 H x 73 W x 94 D
Weight - 211g including fixings
