Reelax - Plastic Rigging Kit

The Reelax Plastic Kit is used for rigging a halyard system on to an outrigger pole.

The halyard system allows a Blacks Release Clip (made in the U. S. A) to be positioned anywhere along the length of the out rigger pole.

The Blacks Release Clip is tension set to the desired strike pressure from the trolled rod and is to be deployed from the out rigger pole.

Either side of the Blacks Release Clip is a Rosco 851-4/0 USA Black Coast Lock Snap Swivel which insures tangle free rigging.

The Reelax Plastic Kit main halyard line is solid 2. 00mm monofilament which has a black pigmentation for U. V protection and stability.

Aluminum crimps are used to connect main line to swivels.

Constant tension is applied from Reelax Snubbers consisting of heavy duty 8. 00mm shock chord which is doubled over with a nylon hook and pulley fitted.

This provides a connection to the boat via the nylon hook and saddle while at the opposite end of the Reelax Snubber the main line runs threw a Nylon Pulley.

Fitted along the length of the outrigger pole at 3 precise positions are 316 stainless eye nuts.

With the eye nut at the tip of the outrigger pole fitted with a D-Shackle and Nylon Pulley.

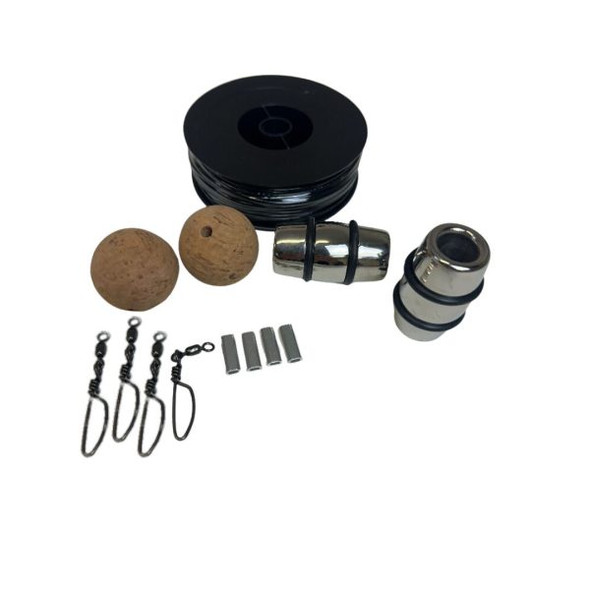

The Reelax Plastic Kit consists of all the components to rig 1 pair of outrigger poles.

EYENUTS SUPPLIED MUST BE FINGER TIGHT ONLY AND THREAD LOCK SUCH AS LOCTITE MUST BE USED.

Please Note-All Reelax equipment is made to order and there is a manufacture time of around 7-10 days plus delivery.

Also some of the Reelax range will incur extra freight charges which we will notify you of as soon as we receive your order.
