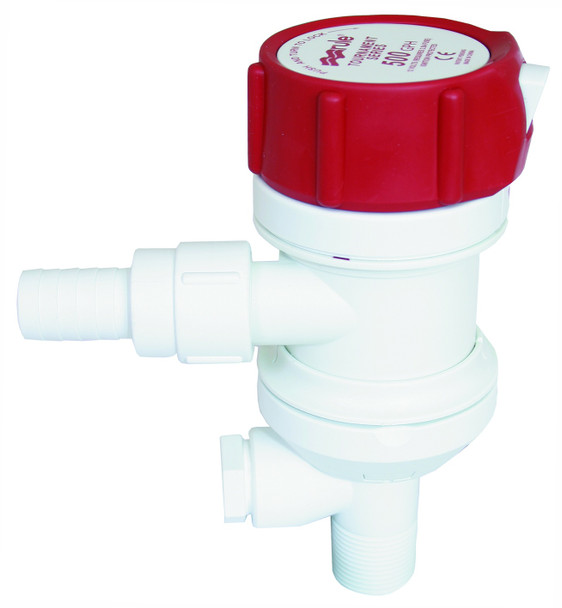

Rule Tournament 400 Dual Port Livewell Pumps - 3/4" Thread Inlet Valve
Rule’s tournament 400 series dual port thru-hull Livewell cartridge pumps are built on Rule’s unsurpassed quality and leadership in design and technology. Installation and plumbing is made easier with rotatable base & outlet.
- 3 Styles available - angled inlet, straight inlet, 3/4" thread valve mount
- 3 Gallon per hour sizes available - 500 GPH, 800 GPH, 1100 GPH
- All styles have an additional 1/2" threaded plugged inlet port to allow inlet connection of a deckwash pump if desired
- 360 degree rotatable inlet base + outlet for easier installation
- Supplied with threaded rotatable glass filled nylon hose barbs
- 1 each straight & 90 deg (20mm in 500 & 800, 28mm in 1100)
- Easy-grip rubber overmould spring loaded removable motor cartridge
- Long lasting and powerful RULE motors (12 volt only)
- Rugged glass filled nylon pick-up tube
- 12 volt only.
- 3 year limited warranty
Part Number | Description | Capacity | Hose Tail | Voltage | Fuse |
---|---|---|---|---|---|
RWB56 | 3/4” thread valve inlet | 500GPH | 20mm (3/4") | 12V | 2.5 Amps |
RWB57 | 3/4” thread valve inlet | 800GPH | 20mm (3/4") | 12V | 5 Amps |
RWB58 | 3/4” thread valve inlet | 1100GPH | 28mm (1-1/8") | 12V | 6 Amps |
