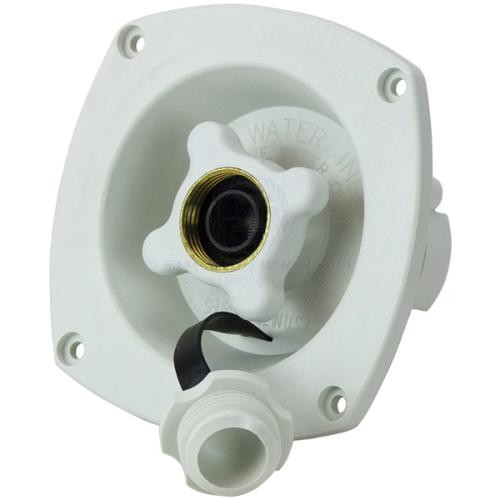

Description
- Diaphragm design prevents high-pressure damage often caused by city water systems.
- Reduces mains water pressure to 50psi (232143) or 65psi (232140, 232141, and 232142)
- Leak-tight, stress and crack-resistant while surpassing all check valve code requirements.
- Include a check valve.
- 3/4 inch NPT (F) inlet suits 45335 3/4 inch NPT (M) x Snap-On tail.
- 1/2 inch NPSM - Male outlet.
| Part No. | 232140 | 232141 | 232142 |
| Length | 117mm | 117mm | 117mm |
| Width | 117mm | 117mm | 117mm |
| Recess Depth | 120mm | 120mm | 120mm |
| Recess Cut Out | Dia. 88mm | Dia. 88mm | Dia. 88mm |
| Colour | Gel White | Black | Chrome |
| Mount Screws | 4mm r/h | 4mm r/h | 4mm r/h |
| Mount | Wall Mount | Wall Mount | Wall Mount |
| Pressure | 65PSI | 65PSI | 65PSI |
