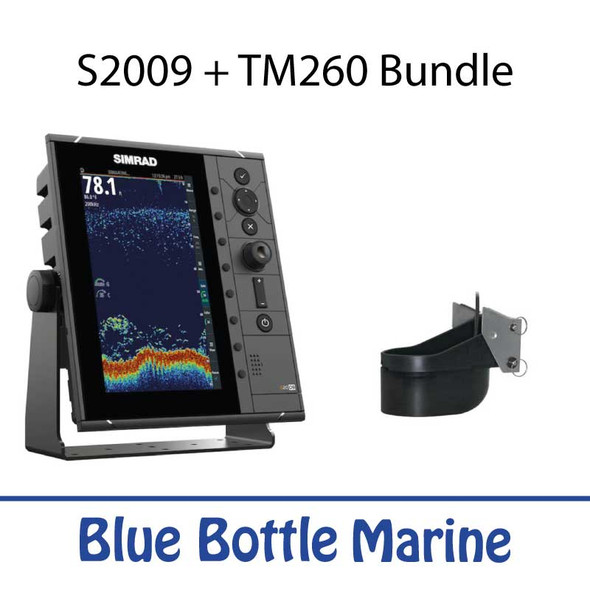

SIMRAD S2009 Fish Finder Sounder
The Simrad S2009 Fish Finder combines the Broadband Sounder module with CHIRP technology, 9-inch portrait display for maximum vertical detail, and intuitive keypad-driven operation. Robust yet compact with both bracket and flush-mount installation options, the S2009 was designed to meet the need for a dedicated fish finder display aboard coastal and offshore fishing vessels.
Key features
- Dedicated fish-finder with integrated Broadband Sounder™ module and CHIRP technology
- High depth penetration and ping speed
- Vertical heave compensation
- 9-inch 480x800-pixel portrait LCD
- High-brightness display ideal for outside installation
- See clearly with White Line, White Marker, and Colour Erase features
- Simple operation with 8 direct-access menu keys
- Bracket and flush mounting options (bracket included)
- Full-sized SD card slot for logs and software updates
- Ethernet, NMEA0183 & NMEA2000 connectivity. Full ethernet networking available via RTM-2 Software Update. June 2016
Integrated CHIRP Echosounder
S2000 series displays feature a built-in Echosounder module with CHIRP technology to deliver higher resolution, improved target separation, and greater image clarity than traditional sonar. Simrad technology makes CHIRP available not only for special-purpose CHIRP transducers, but also for traditional single-frequency transducers. This offers a cost-effective upgrade to CHIRP technology by installing an S2000 series fish finder for use with your existing transducer. Installation is simple thanks to a plug-and-play port for Simrad and Airmar transducers with blue seven-pin connectors, and a range of optional adapters to enable easy retrofit to other transducer types.

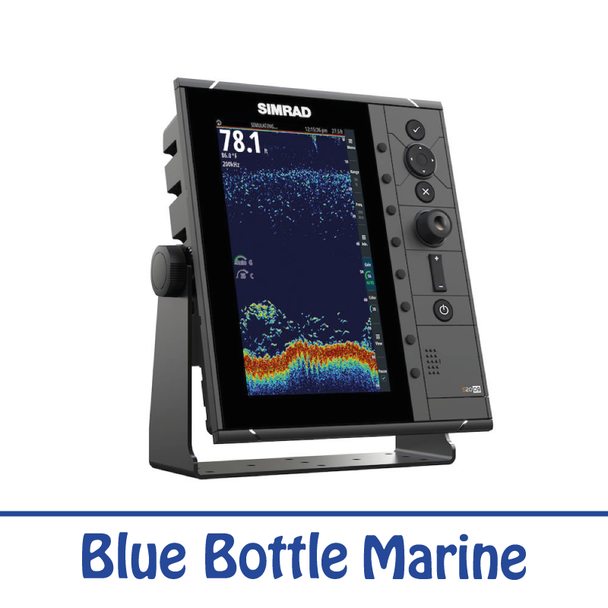

9-inch Portrait Display
The S2009 maximizes screen size where limited mounting space is available, with a compact 9-inch portrait display that’s perfect for centre consoles. Its vertical layout shows the water column with a high level of detail, making it easy to distinguish individual fish arches and other key features. Direct-access menu keys beside the display provide intuitive control of on-screen menu options, enabling one-button access to key settings and features. With reliable, long-life operation and clear tactile feedback, the S2009’s large buttons are suitable for use in rough seas, while travelling at speed, and with wet or gloved hands.
Networking & Expansion
It’s easy to share sonar data with other Simrad displays over an Ethernet network. S2000 series fish finders can also be used as dedicated displays for the built-in sonar module on Ethernet-connected Simrad multifunction displays, freeing your main display for other purposes such as navigation or radar. Other devices can be integrated via NMEA 2000; and NMEA 0183; connectivity, enabling additional functionality such as marking a waypoint on your chartplotter straight from the fish finder’s history in order to revisit a promising spot.
Connectivity
| NMEA 0183 Sentences supported | Input: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, HDT, HDM, MWV, MWDOutput: GGA, GLL, GSA, GSV, VTG, ZDA, RMC, DBT, DPT, MTW, VLW, VHW, HDG, MWV, MWD, TLL, TTM |
|---|
| Ethernet | 1 x 5 pin Yellow, 1 Mbit |
|---|
| N2K PGNs | NMEA 2000 PGN (receive)59392 ISO Acknowledgement59904 ISO Request60928 ISO Address Claim126208 ISO Command Group Function126992 System Time126996 Product Info127237 Heading/Track Control127245 Rudder127250 Vessel Heading127251 Rate of Turn127257 Attitude127258 Magnetic Variation127488 Engine Parameters, Rapid Update127489 Engine Parameters, Dynamic127493 Transmission Parameters, Dynamic127503 AC input status127504 AC Output Status127505 Fluid Level127506 DC Detailed Status127507 Charger Status127508 Battery Status127509 Inverter Status128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129033 Time & Date129038 AIS Class A Position Report129039 AIS Class B Position Report129040 AIS Class B Extended Position Report129041 AIS aids to Navigation129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 AIS Class B Extended Position Report129794 AIS aids to Navigation129801 Cross Track Error129283 Cross Track Error129284 Navigation Data129539 GNSS DOPs129540 GNSS Sats in View129794 AIS Class A Static and Voyage Related Data129801 AIS Addressed Safety Related Message129802 AIS Safety Related Broadcast Message129808 DSC Call Information129809 AIS Class B “CS” Static Data Report, Part A129810 AIS Class B “CS” Static Data Report, Part B130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130313 Humidity130314 Actual Pressure130576 Small Craft Status130577 Direction DataNMEA 2000 PGN (transmit)126208 ISO Command Group Function126992 System Time126996 Product Info127237 Heading/Track Control127250 Vessel Heading127258 Magnetic Variation128259 Speed, Water referenced128267 Water Depth128275 Distance Log129025 Position, Rapid Update129026 COG & SOG, Rapid Update129029 GNSS Position Data129283 Cross Track Error129284 Navigation Data129285 Route/Waypoint Data129539 GNSS DOPs129540 GNSS Sats in View130074 Route and WP Service - WP List - WP Name & Position130306 Wind Data130310 Environmental Parameters130311 Environmental Parameters130312 Temperature130577 Direction Data |
|---|
| NMEA 0183 | 1 x 8 pin connector with 2 x NMEA0183 IO ports, baud rates 4800, 9600, 19200, 38400. Optional 000-11247-001 cable required |
|---|
| NMEA 2000 | 1 x NMEA 2000 Micro-C port, 1 LEN |
|---|
Display
| Resolution | 480 x 800 |
|---|
| Screen Brightness | 1200 cd/m2 |
|---|
| Size and Type | 9" LED Backlit colour TFT LCD |
|---|
| Viewing Angles | 110 x 160 |
|---|
Electrical
| Power Consumption, max. | 11 W |
|---|
| Power Consumption, typical | 11 W |
|---|
| Recommended Fuse Rating | 3A |
|---|
| Supply Voltage | 12/24VDC (10.8 - 31.2 VDC) |
|---|
Environment
| Operating Temperature Range | -15 - 55 deg C (5 - 131 deg F) |
|---|
| Storage Temperature Range | -25 - 55 deg C (-13 - 131 deg F) |
|---|
| Waterproof rating | IPX7 |
|---|
MFD
| Compass Safe Distance - Metric, imperial | 0.65 m (25.6") |
|---|
Physical
| Dimensions (W x H x D) | 224 x 260 x 61 mm (8.8 x 10.2 x 2.4 in) |
|---|
| Weight | 2 kg (4.4 lbs) |
|---|
Radar
| Frequencies | CHIRP 28-38, 40-60, 85-145, 130-210 kHz; Broadband 28, 38, 50, 83, 200 kHz depending on connected transducer |
|---|
| Max Depth | Up to 3000m (9840') depending on connected transducer |
|---|
| Output power | 1 kW |
|---|
Other
| Warranty Period | 2 years |
|---|
| Interface | Keypad and rotary knob |
|---|
| Languages | Standard Language Pack: English(US), English(UK), Danish, German, Spanish, Finnish, French, Greek, Icelandic, Italian, Dutch, Norwegian, Portuguese, Swedish. Asian, Middle Eastern and Eastern European with Language unlock |
|---|
