ZipWake IT450-S V13 Angled Interceptor 450S V13 With 3m & Cable Cover

Series S Fast-acting Interceptors for comfortable cruising

All components have been meticulously engineered to withstand impact and avoid water ingress, minimizing the risk of costly maintenance and downtime. Interceptor or blade actuation takes place by way of a calibration-free submersible electric servo within the interceptor unit. Its natural water cooling provides excellent working conditions for the brushless DC servo motor, which runs on 12-32 volts. The blade stroke takes 1.5 seconds, outperforming conventional trim tabs by at least a factor of 5.

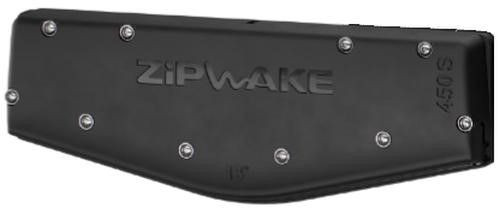

V-shaped interceptors for centerline mounting are perfect for filling the gap between twin outboards or sterndrives, as well as dual propeller tunnels.  The four V-shaped models cover deadrise angles effectively between 11 to 24 degrees. V-shaped centerline mounted interceptors can be included in new installations, or retro-fitted to already installed systems.

Installation is made easy with an integral mounting plate and the option of a concealed or above-waterline, self-sealing, thru-hull cable fitting. The preferred mounting option is achieved by simply routing the servo cable differently. Each interceptor comes with the thru-hull cable fitting, cable covers and a practical drill template.

Key Features:

• True outboard mount
• Modular design
• Fast actuation
• Submersible servo units
• Brushless 12-24V DC servo
• Calibration free
• High-precision positioning
• Durable and accessible
• Integrated mounting plate
• Thru hull fitting options - Above waterline - Concealed behind interceptor
• No corrosive materials

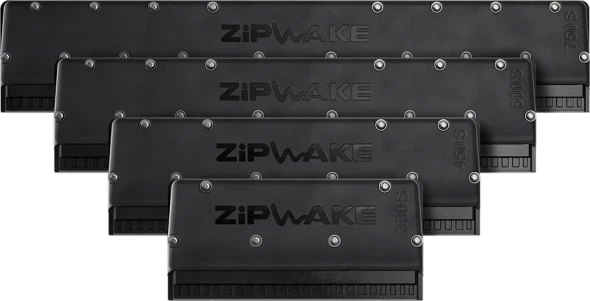

• Straight, V-shaped, Chine and Intermediate models
